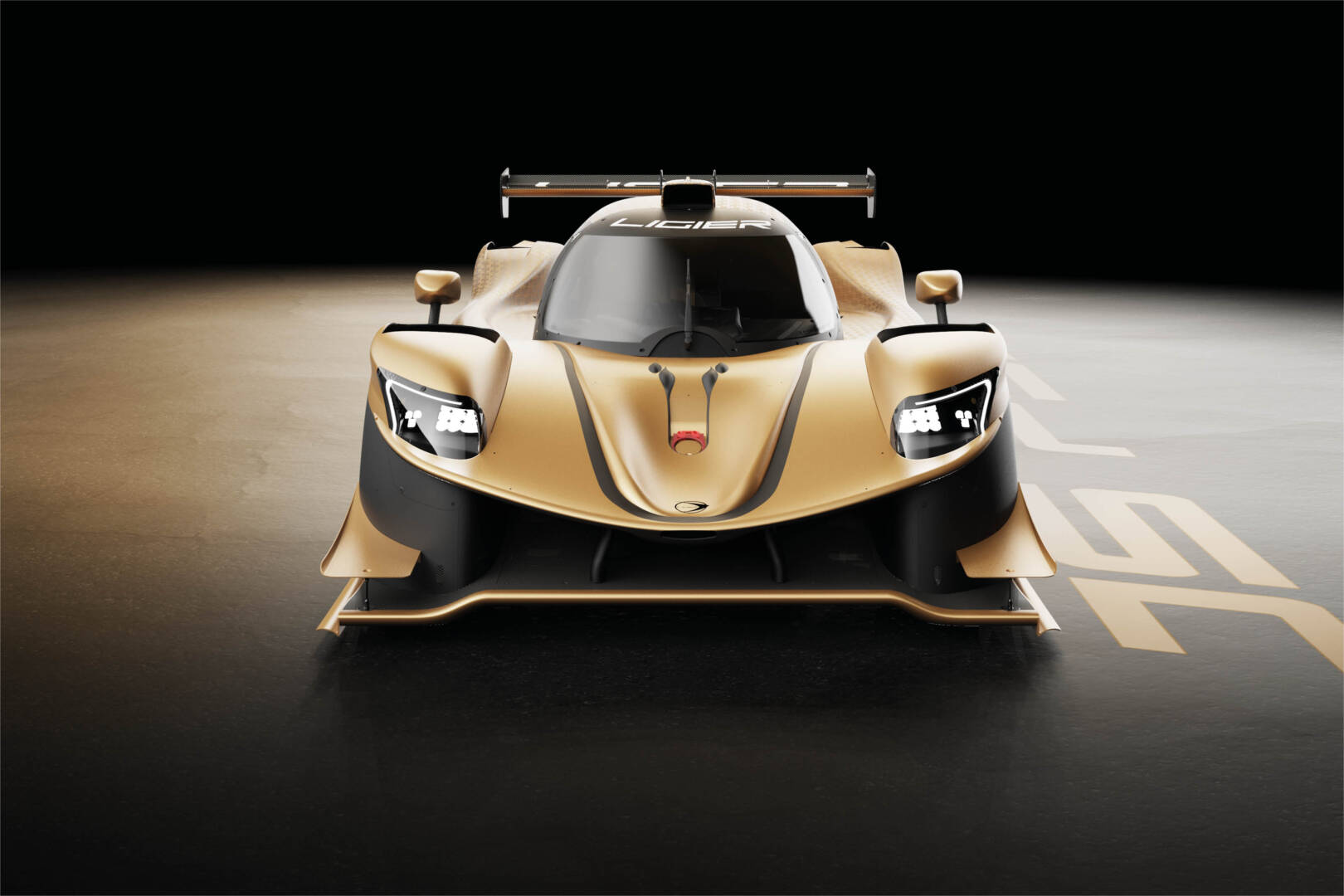

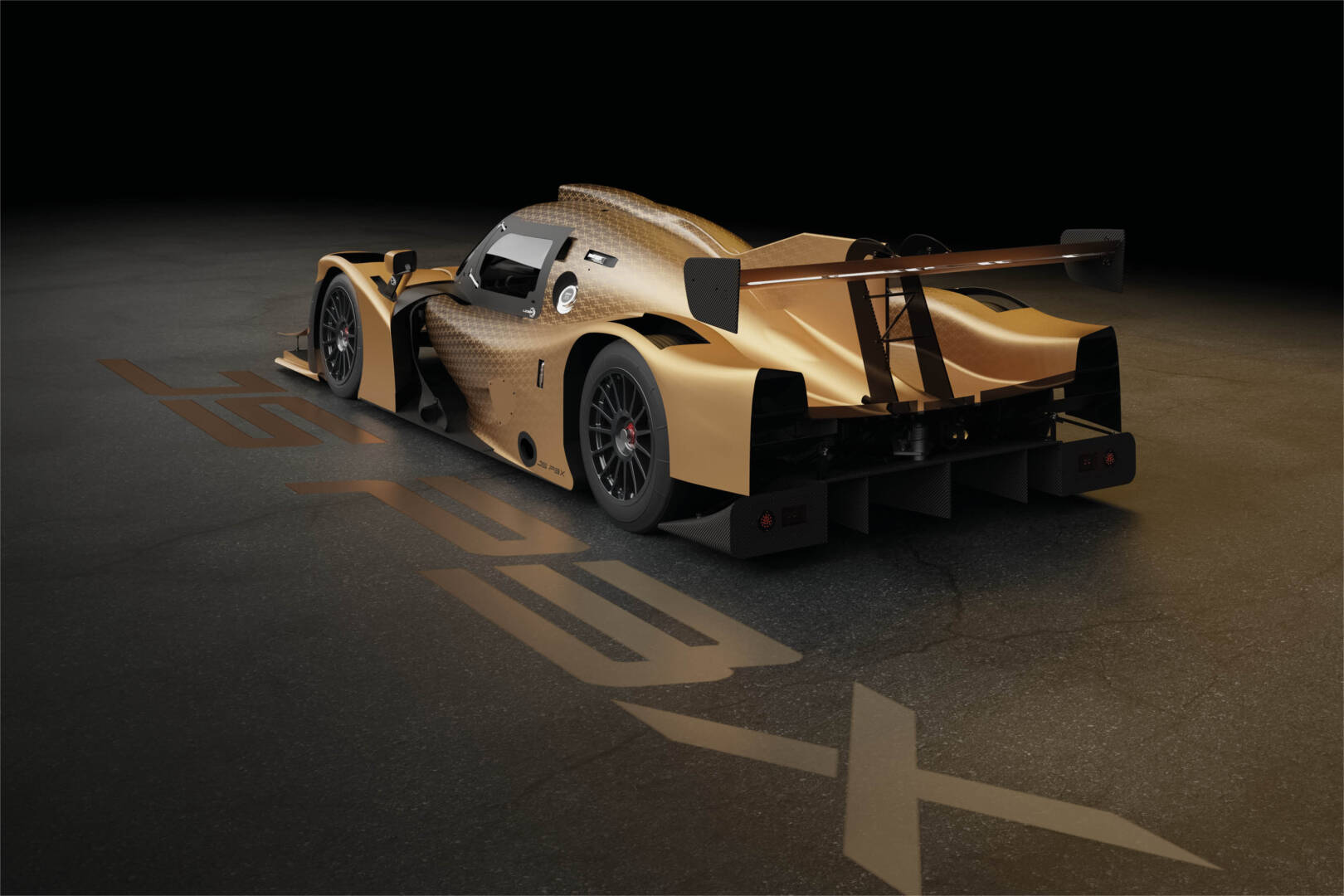

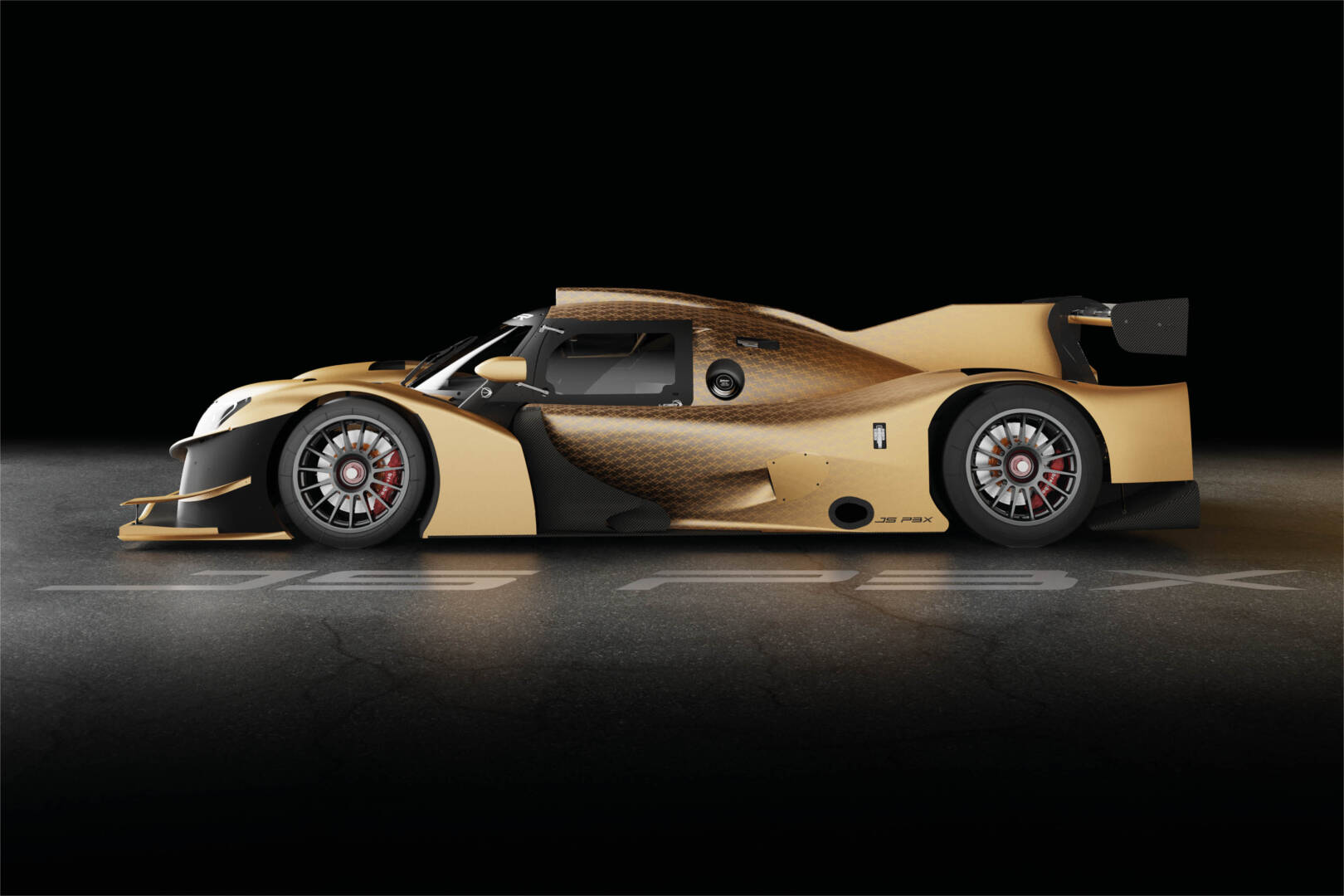

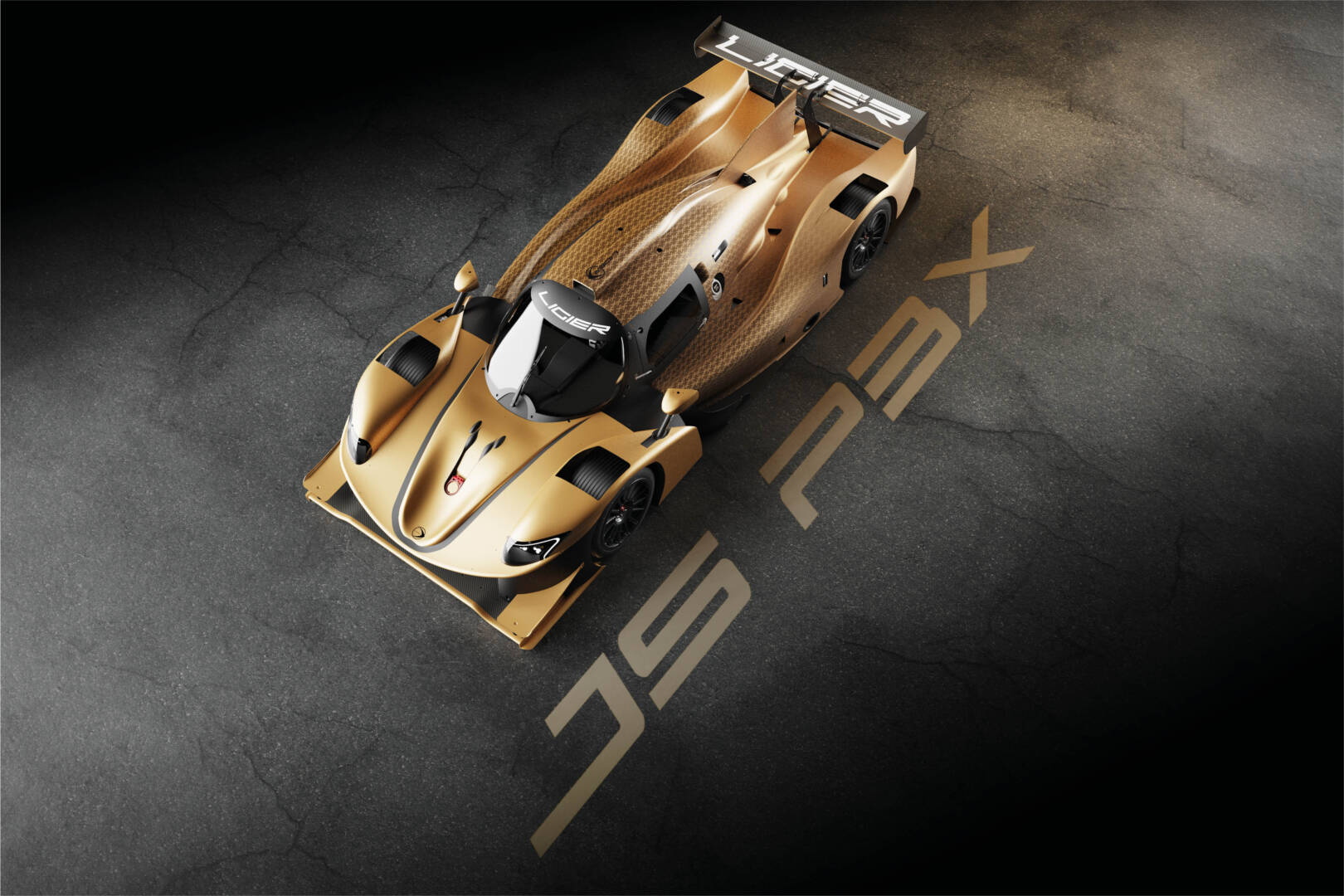

The Ligier JS P3X is a limited series of just ten units, created to celebrate ten years since the launch of Ligier's first LMP3. Inspired by the Ligier JS P320, it features a 625-horsepower V8 engine, a redesigned body, and refined aerodynamics—offering a driving experience that's both radical and accessible.
Each chassis is unique, dressed in an exclusive livery chosen from ten vibrant colors imagined by Ligier—or selected by its owner. Designed as a true collector's model, the JS P3X comes with bespoke elements, including a matching B.R.M watch. A tribute to a decade of passion and performance.
Technical sheet
CHASSIS & BODYWORK
Carbon monocoque ACO LMP3 homologated
Bespoke Carbon bodywork
Brembo braking package with 6 piston calipers, front & rear 14'' discs
OZ Racing Rims Ø18'' magnesium - front width: 12,5'' & rear width: 13''
Dimensions : L 4605 mm – l 1900 mm – wheelbase : 2680 mm
Weight : 950 kg
Fuel tank : 100 litres
Engine
V8 naturally aspirated 6,2 L LT1 engine – developed by Katech
625 hp – Max speed: 320 km/h
Traction control
Suspension
Double wishbones and pushrod and spring-damper combination
4-way through-rod ÖhlinsTTX40 dampers
Adjustable anti-roll bar system
3rd element front and rear
Gearbox
6-speed sequential gearbox Xtrac 1152 with aluminium casing
Semi-automatic pneumatic Megaline steering wheel paddle-shift system
ELECTRONICS
ABS by Bosch
Hydraulic power steering
Motec ECU
Powerful headlights optimized with LED technology
TPMS Sensor
Rear view camera
Security
2025 ACO FIA LMP3 Rules
Zylon side panels
Driver padding
Driver sear carbon shell
Two-seater carbon seat homologated
Cockpit ventilation
HANS compatible headrest
