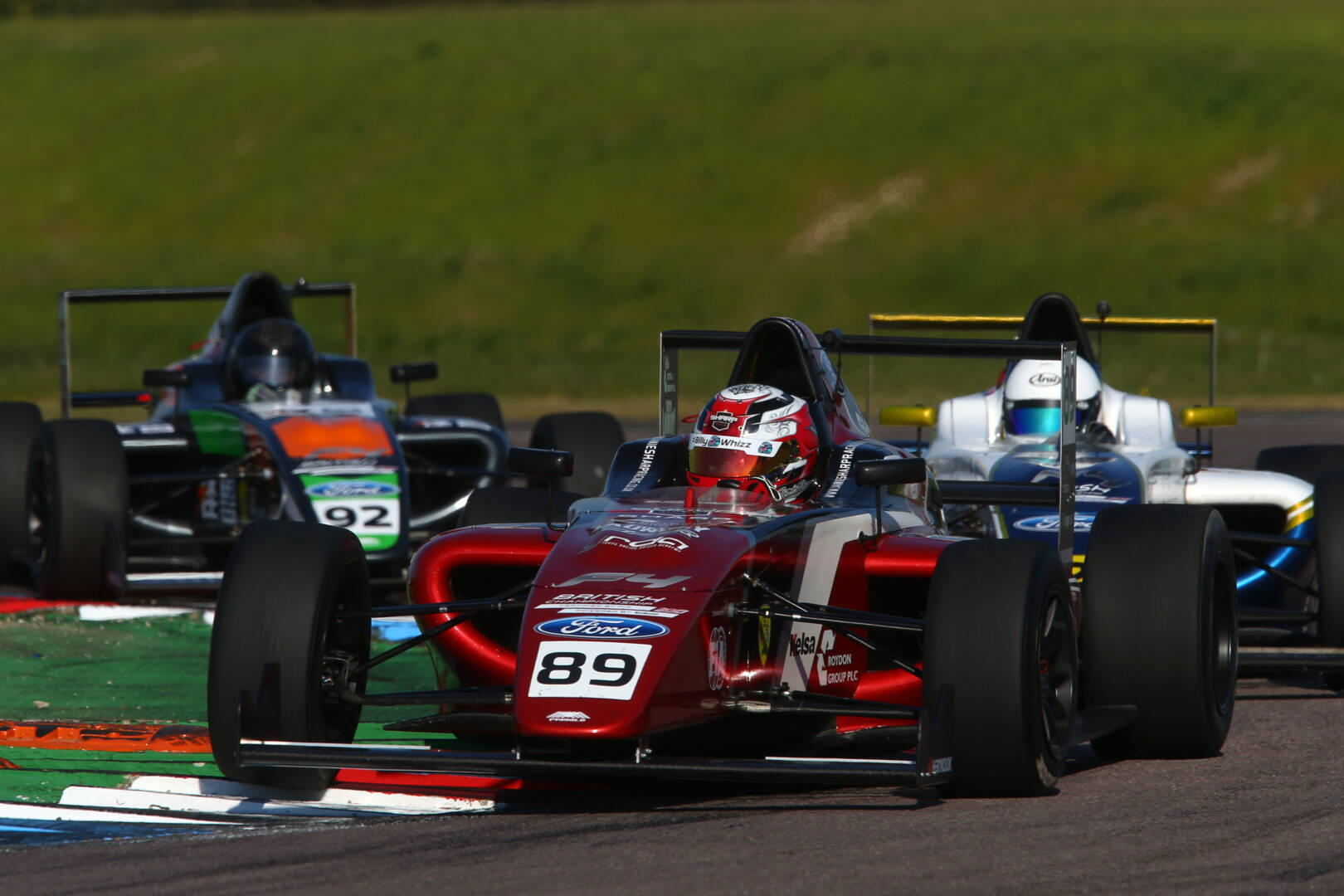

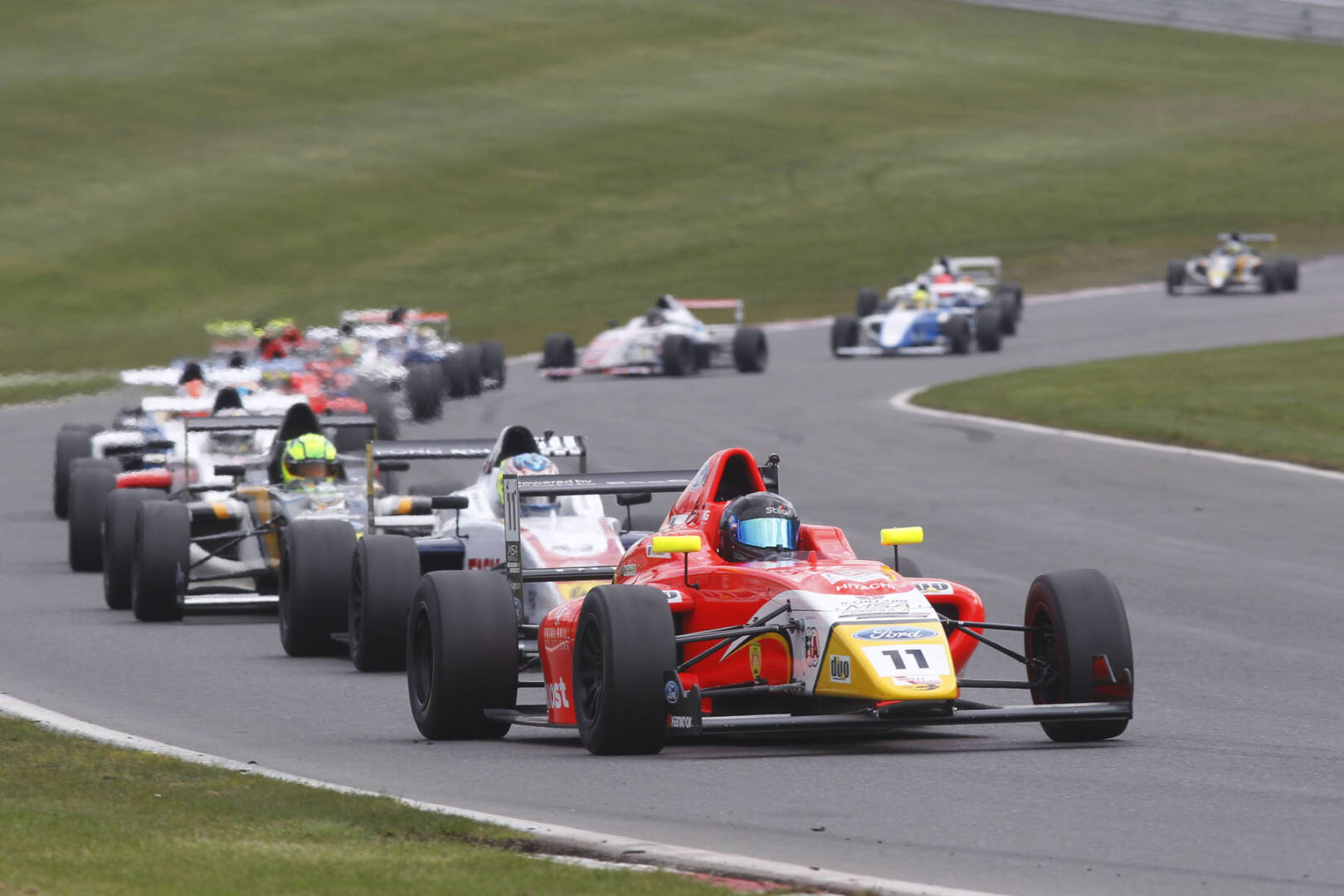

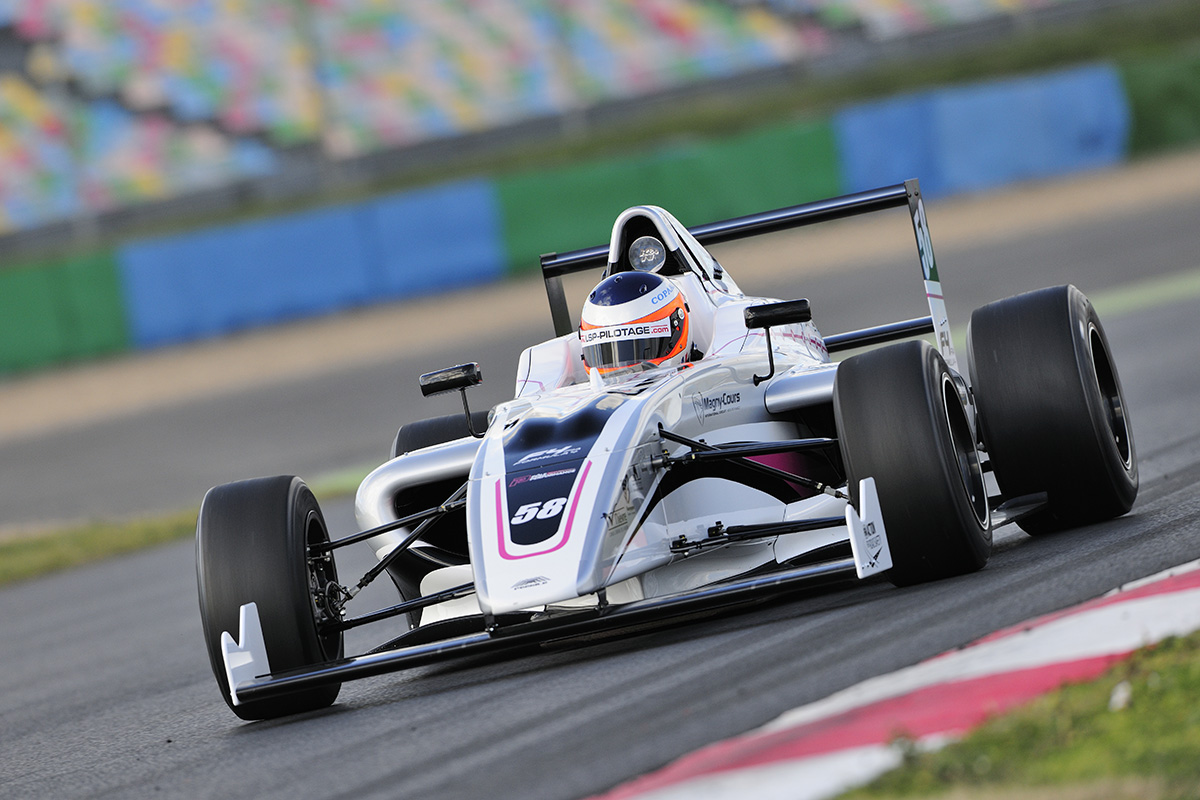

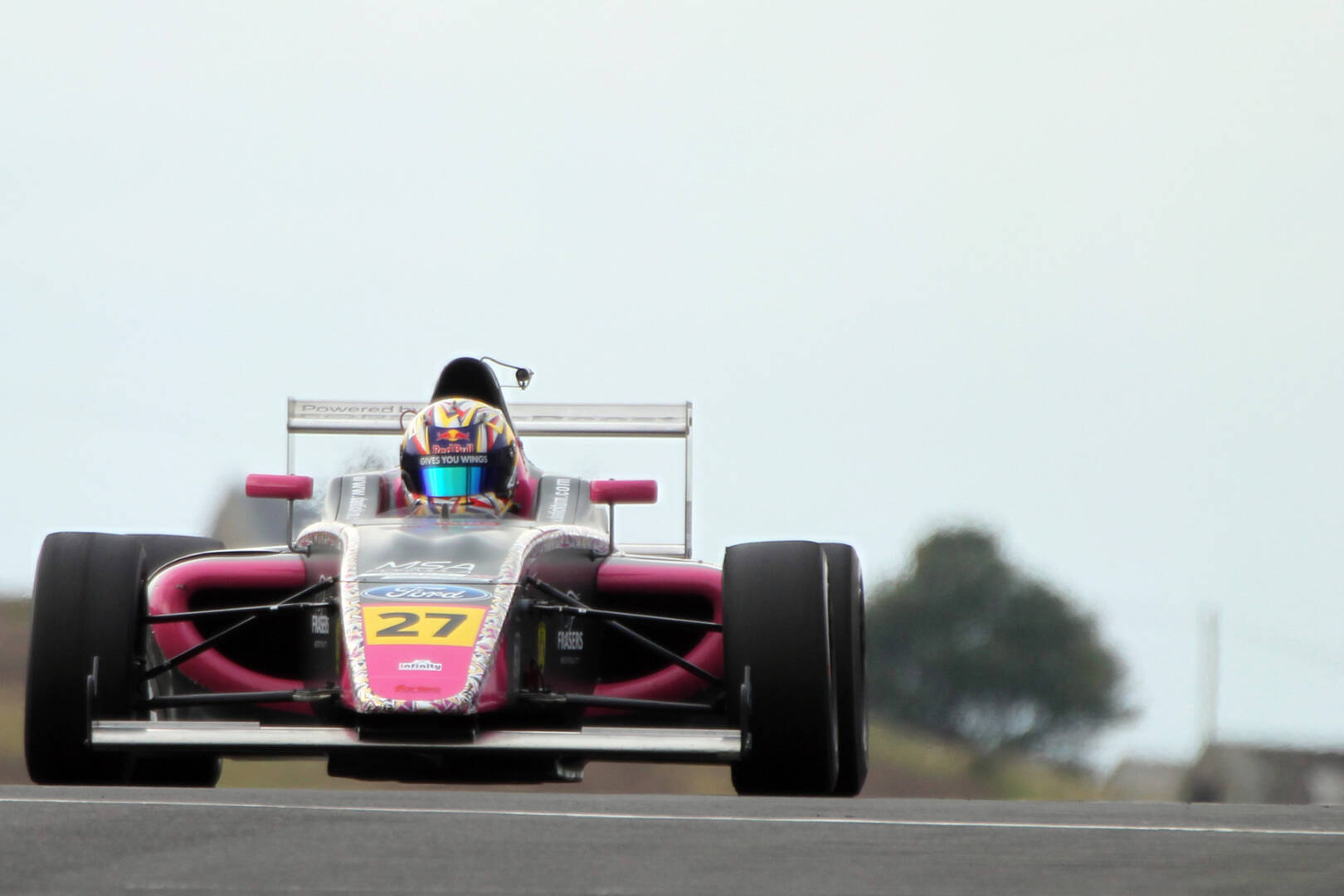

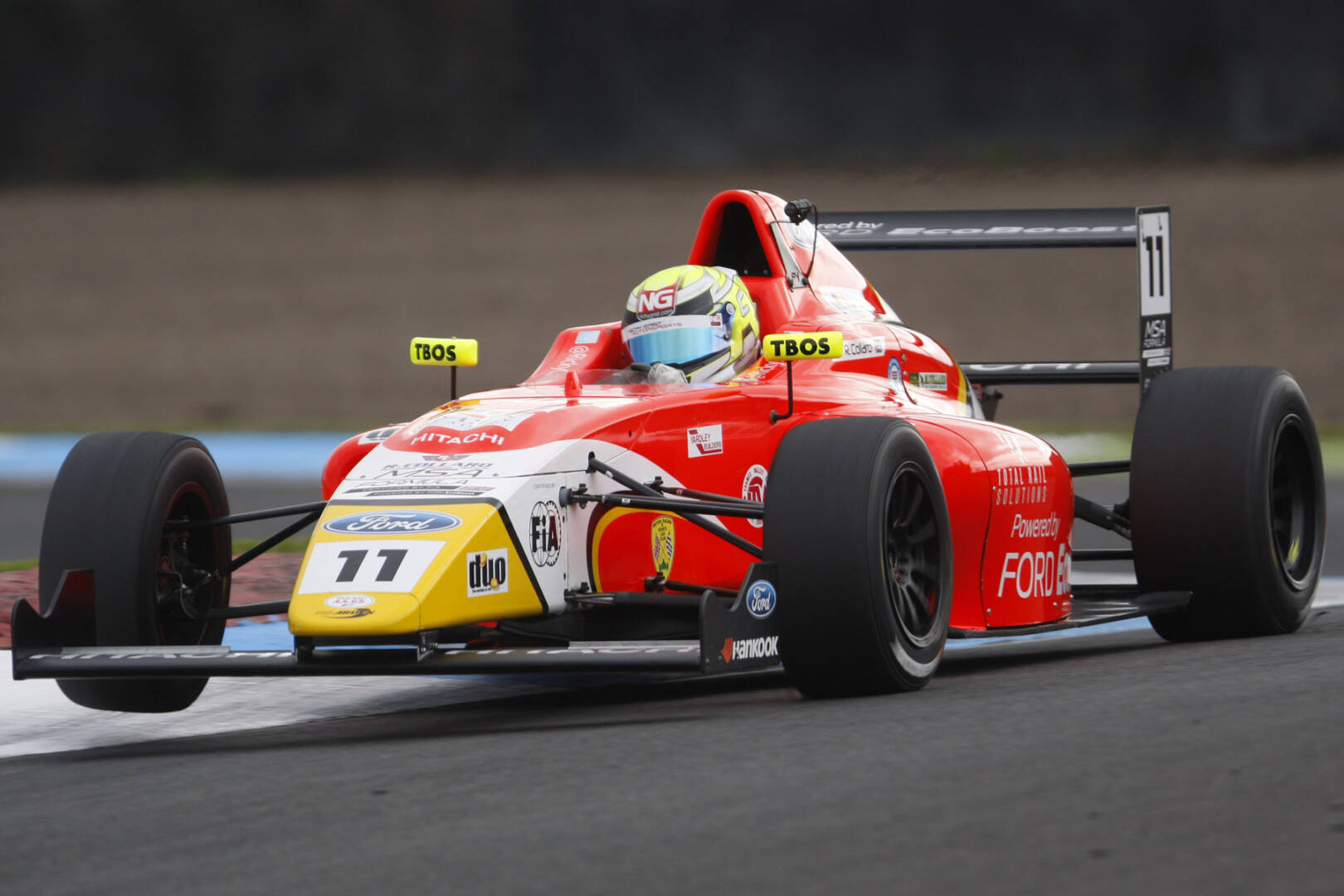

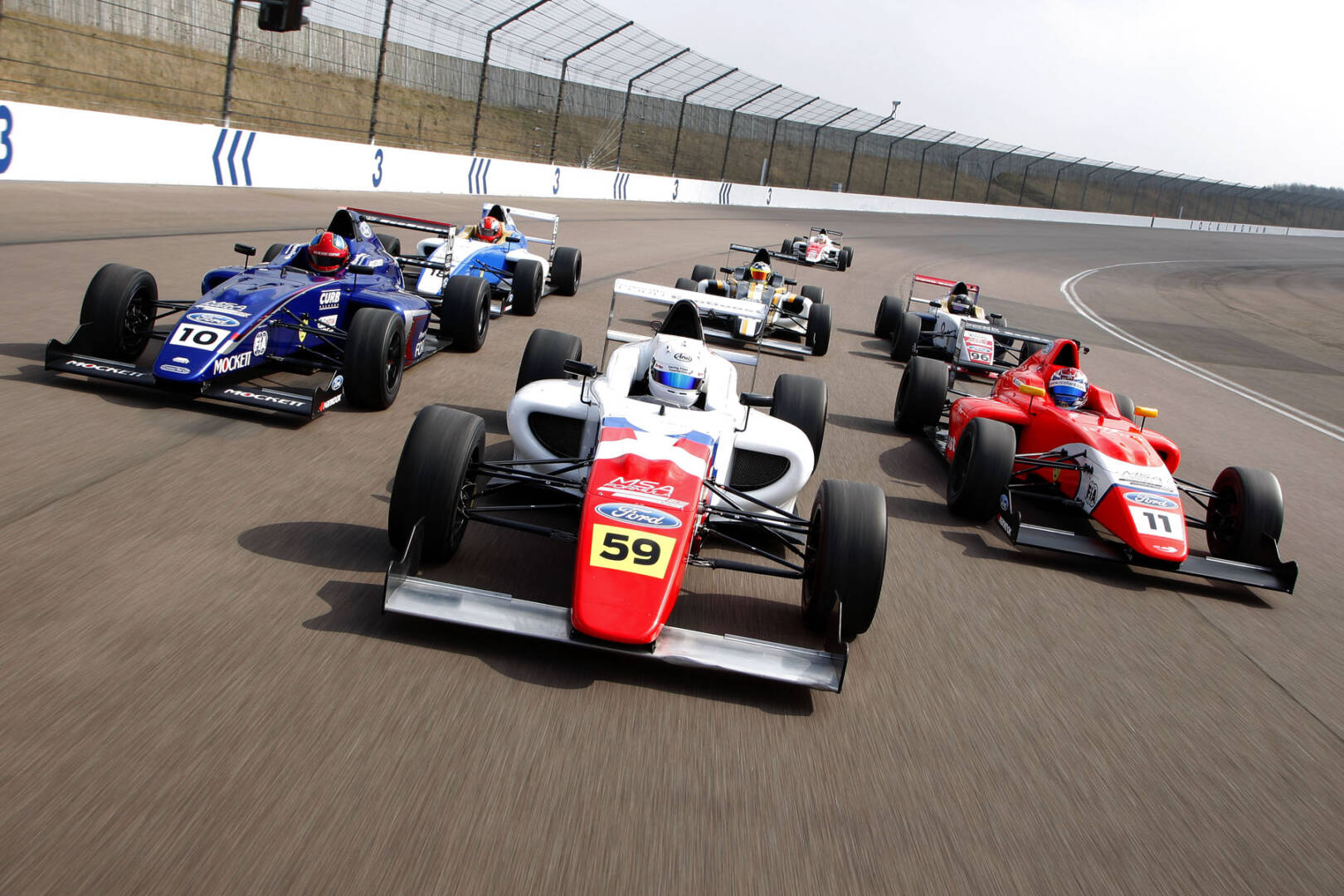

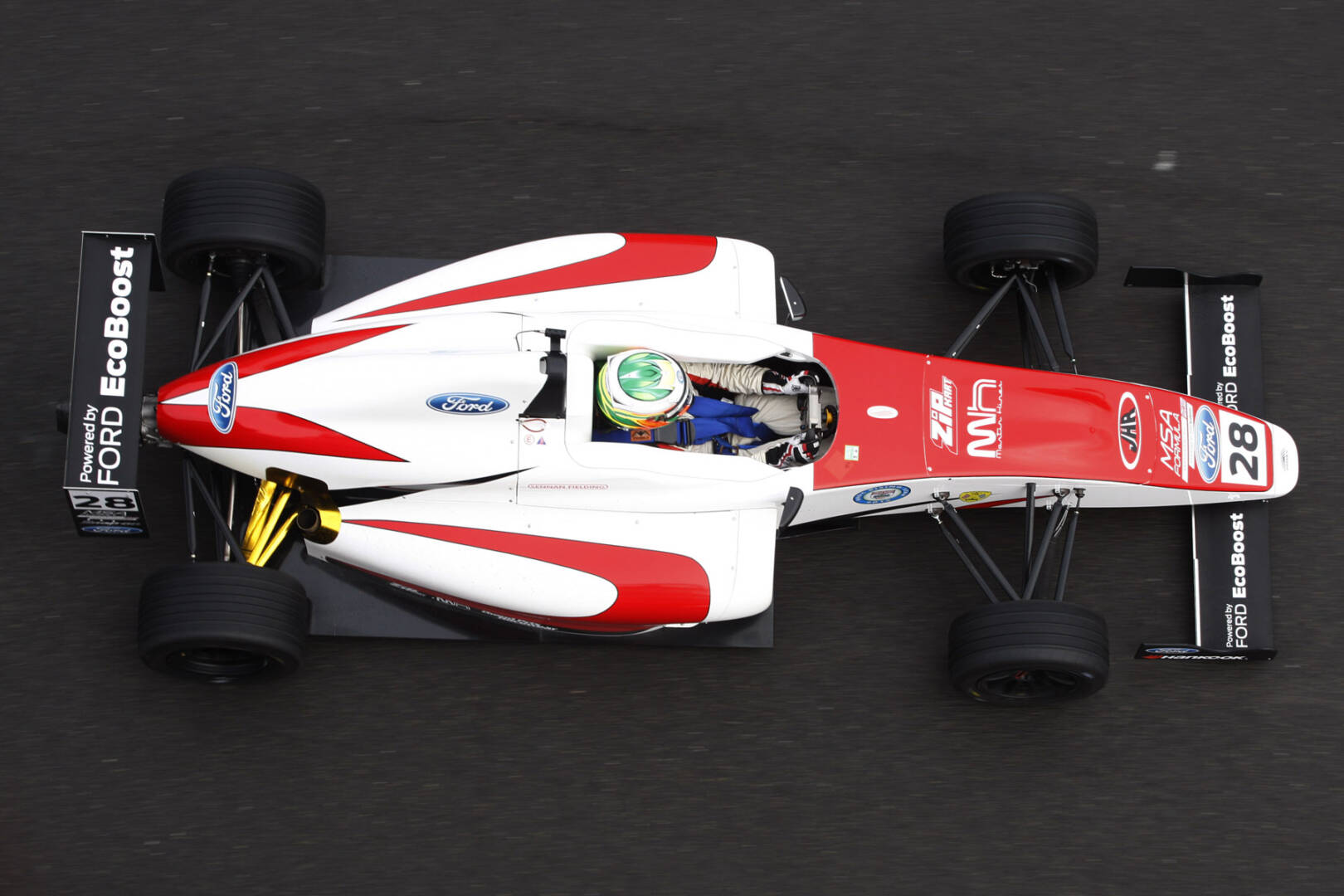

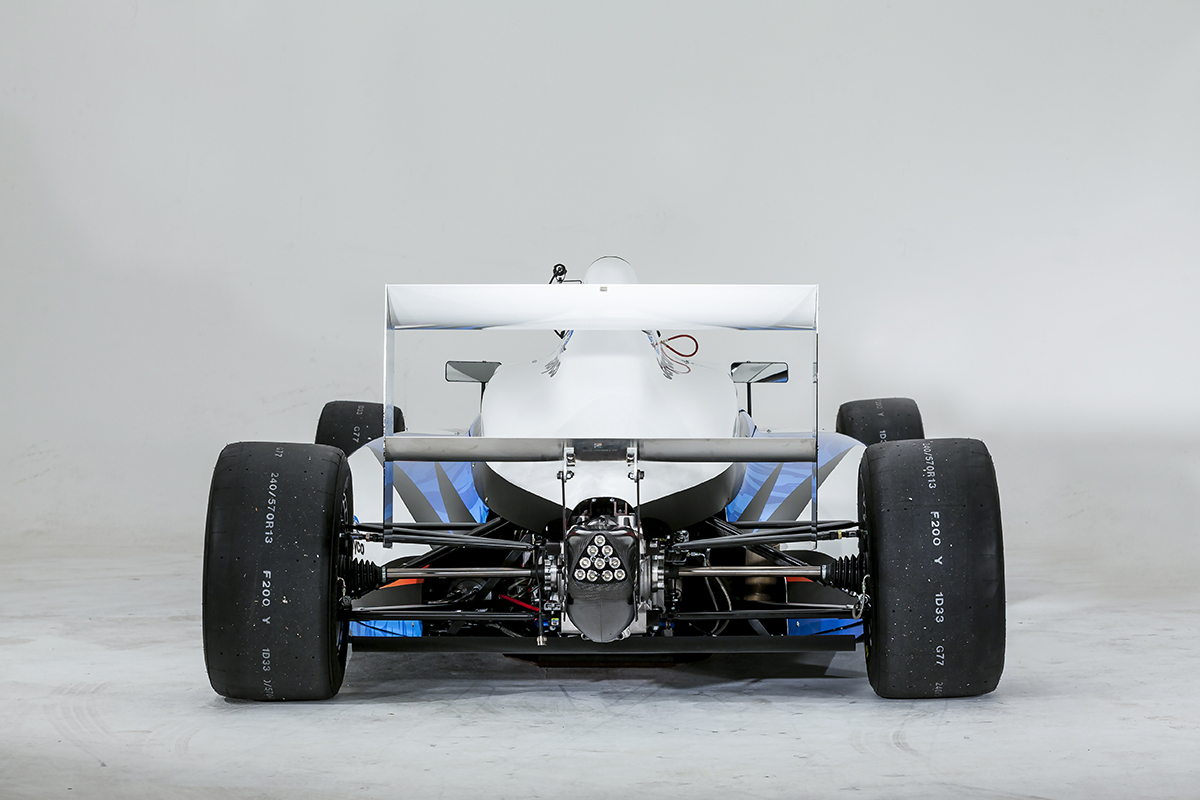

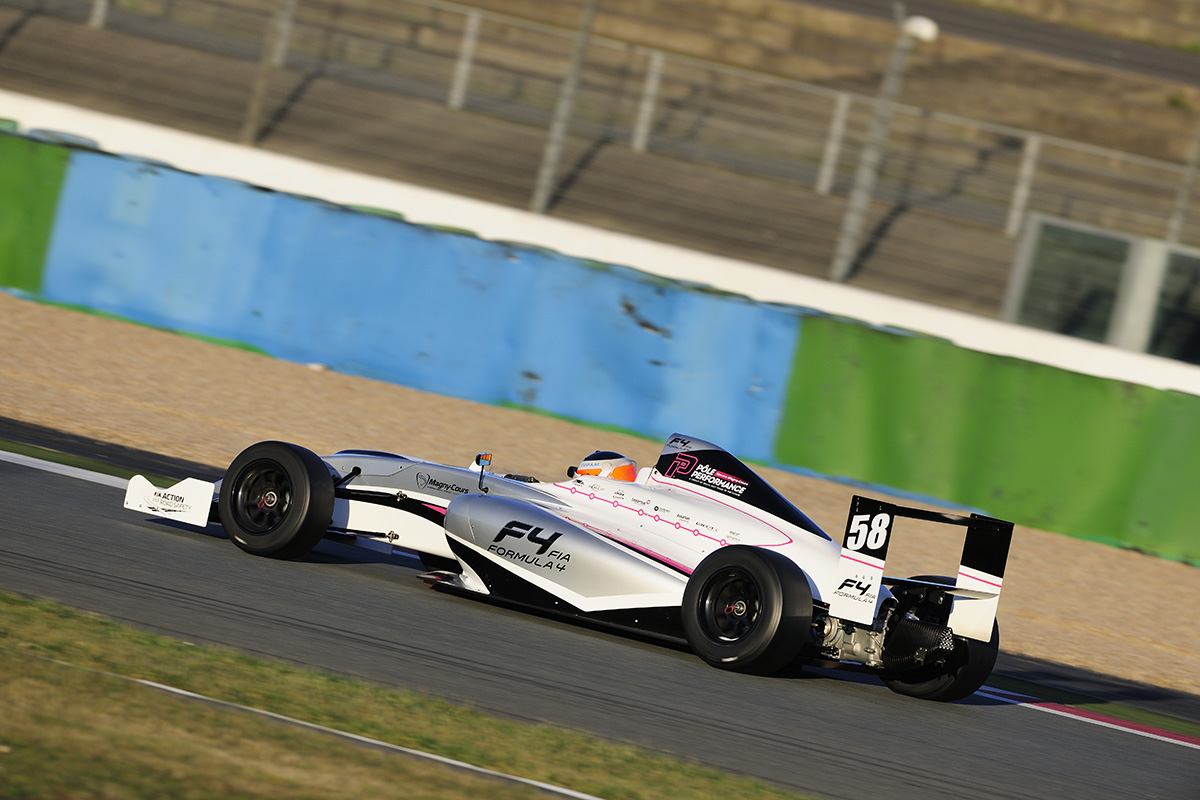

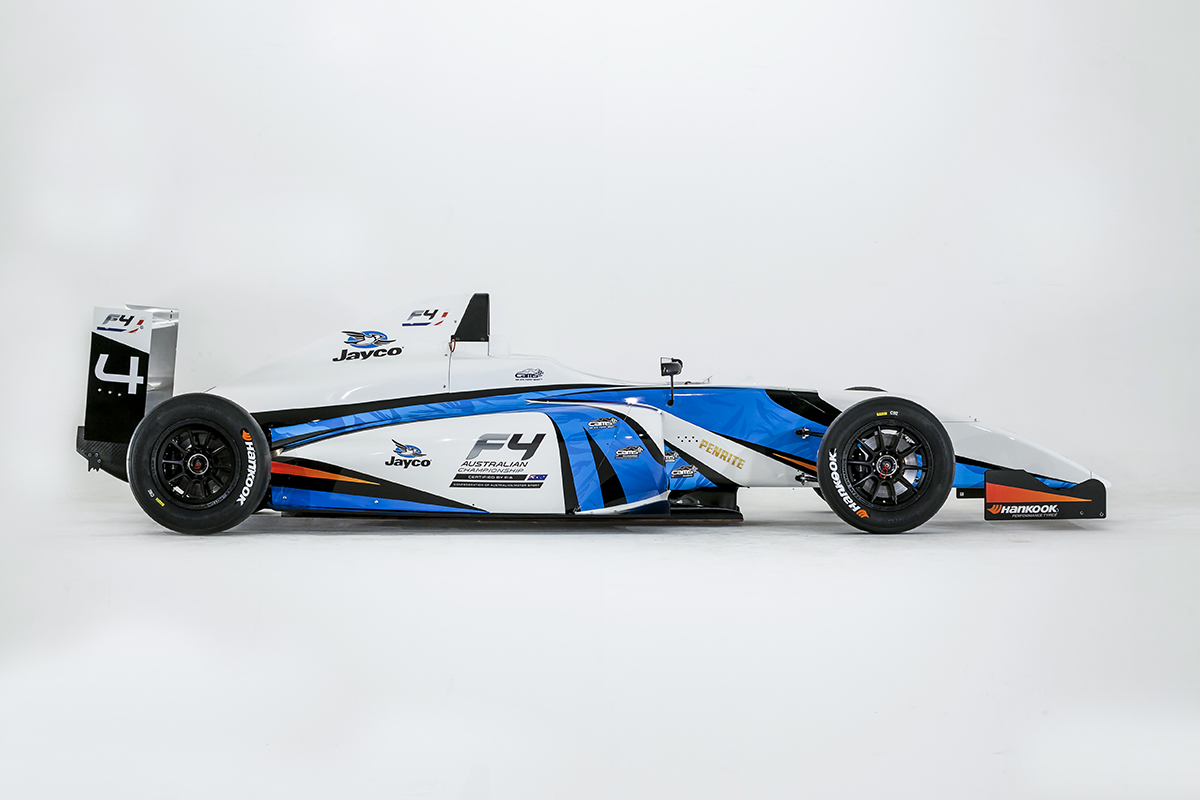

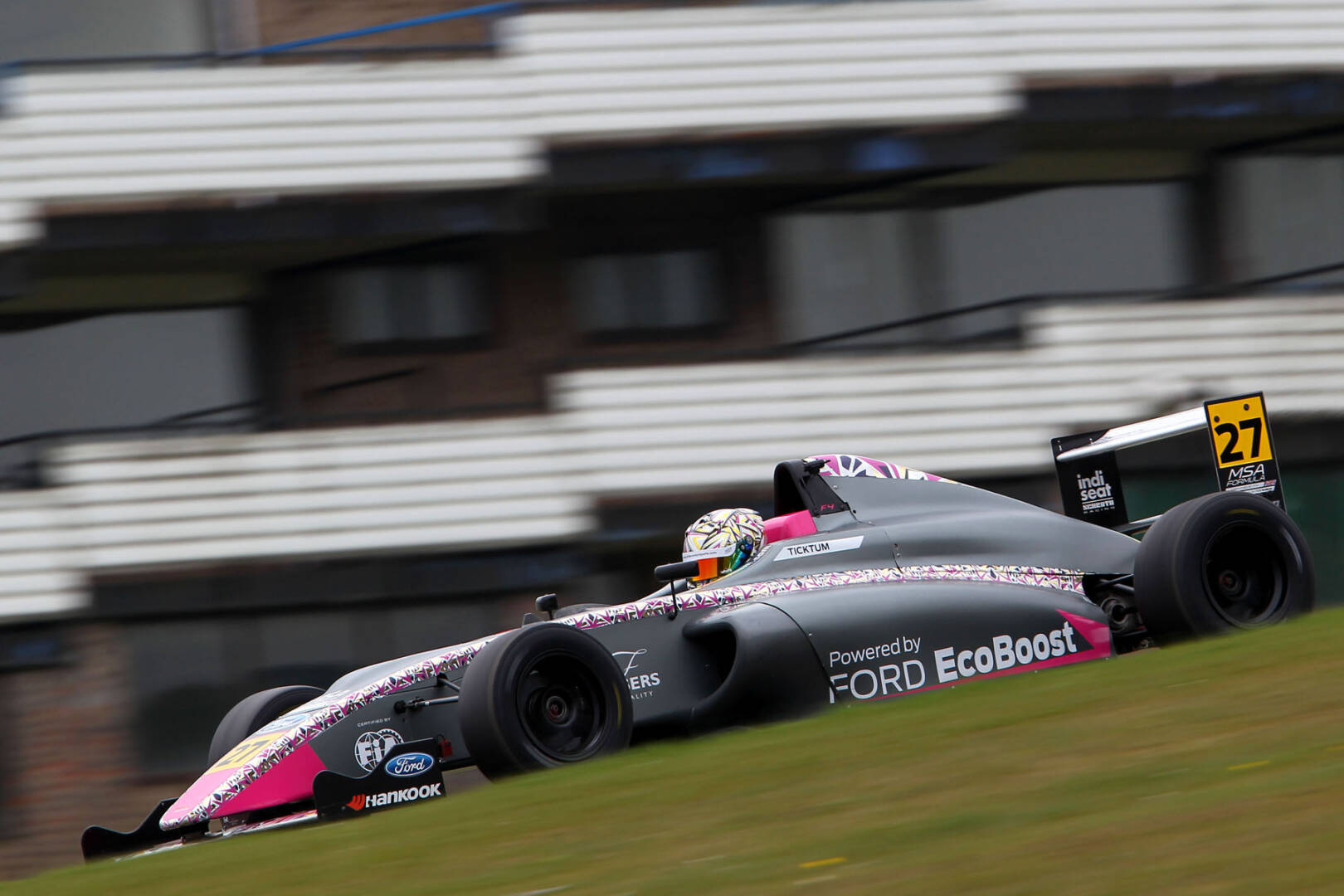

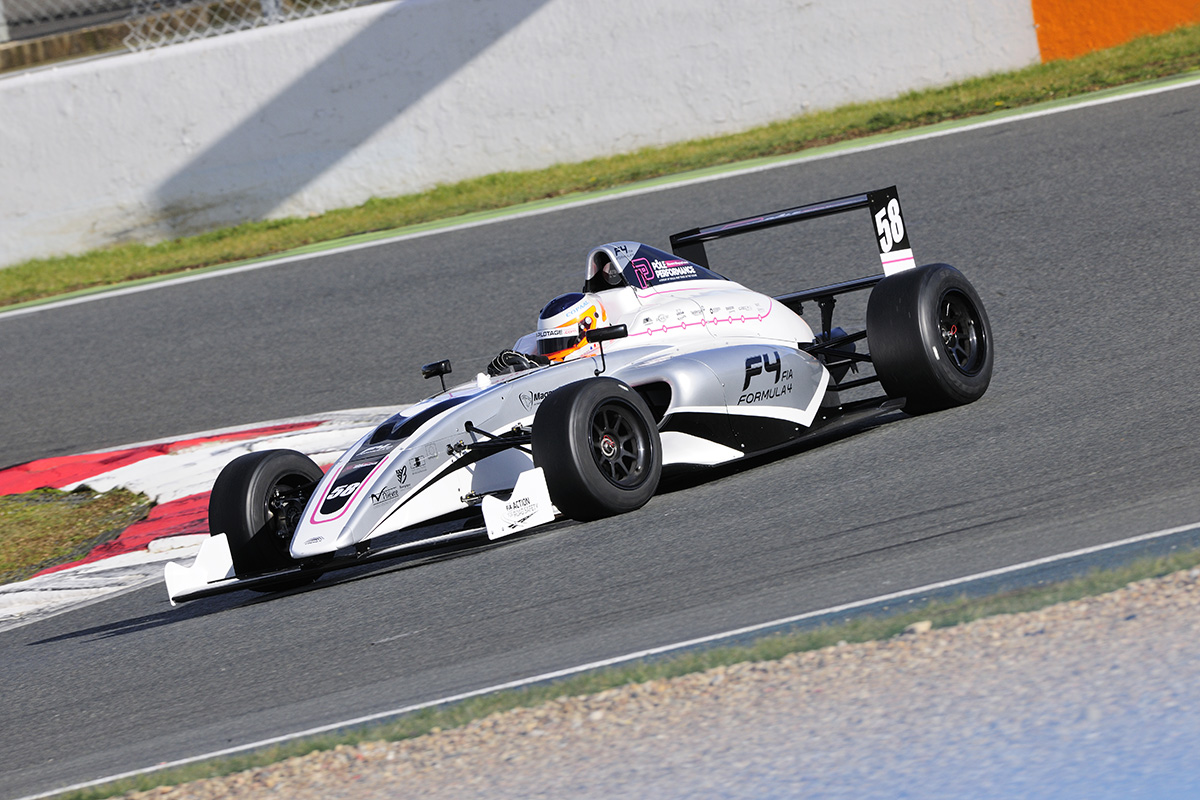

Single-seater carbon fibre monocoque, produced in collaboration with companies from the Pole Performance Nevers Magny -Cours and approved by the FIA in 2014. This race car intended for young drivers all over the world (under the aegis of the National Federations) is equipped with the latest FIA safety specifications and it can fit several engines from different countries. (FORD, GEELY, RENAULT, …).

Technical sheet

CHASSIS

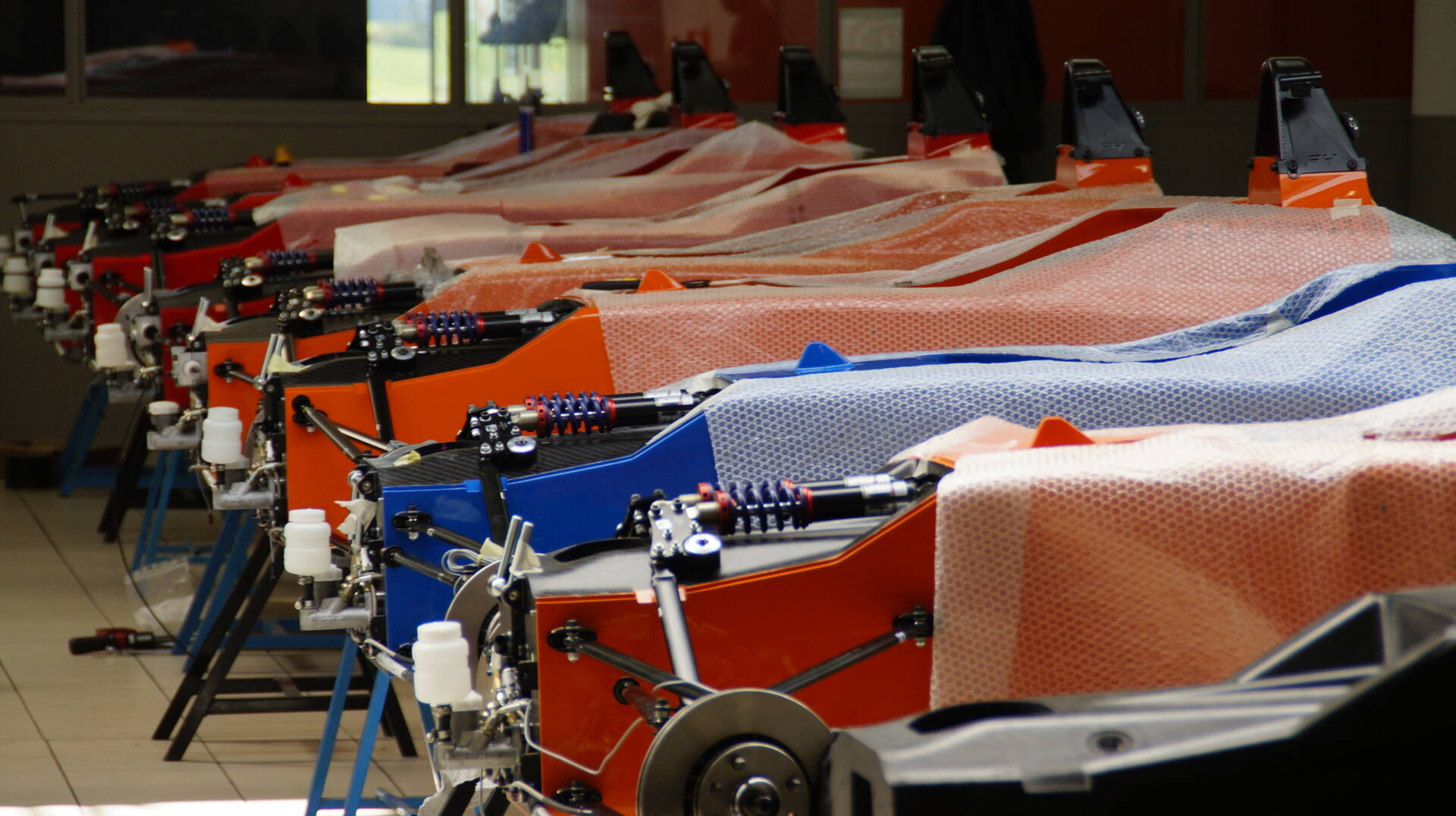

  • FIA Homologated Carbon Monocoque

Engine

  • 4 cylinder engines homologated for FIA F4
    • 2L naturally aspirated Renault and Geely, 1.6L turbocharged Ford EcoBoost
    • Maximum power 160 HP

SUSPENSIONS

  • Front and rear: double wishbones with pushrods
  • twin non-adjustable dampers
  • adjustable anti-roll bars

Safety

  • To FIA standards: front and rear impact absorbing structures
  • anti-intrusion side panels
  • roll hoop
  • removable seat
  • head restraint
  • wheel tether cables
  • fire extinguisher
  • collapsible steering column

Aerodynamics

  • Single element adjustable front wing
  • Two element adjustable rear wing

Dimensions

  • Vehicle : 4467 x 1738 x 958 mm
  • Front wheels : 8" x 13"
  • Rear wheels : 10" x 13
  • Tyres : manufacturer according to championship choice

BRAKES

  • 2 piston calipers Ventilated cast iron brake discs

TRANSMISSION

  • SADEV six speed sequential gearbox with reverse.
  • Pneumatic gearshift control with steering wheel shift paddles.

FUEL TANK

  • FIA FT3 specification. 48 liters
