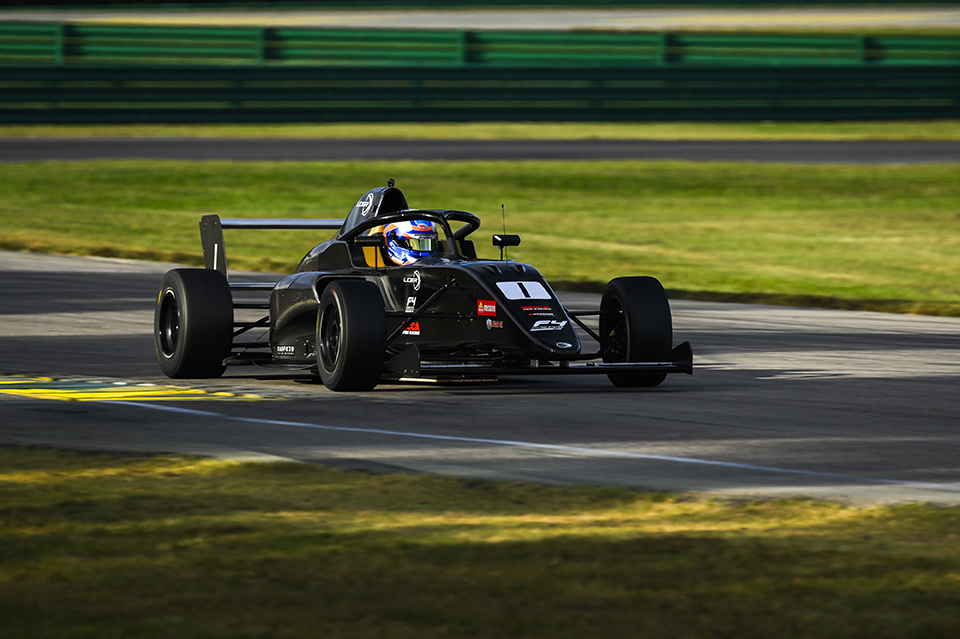

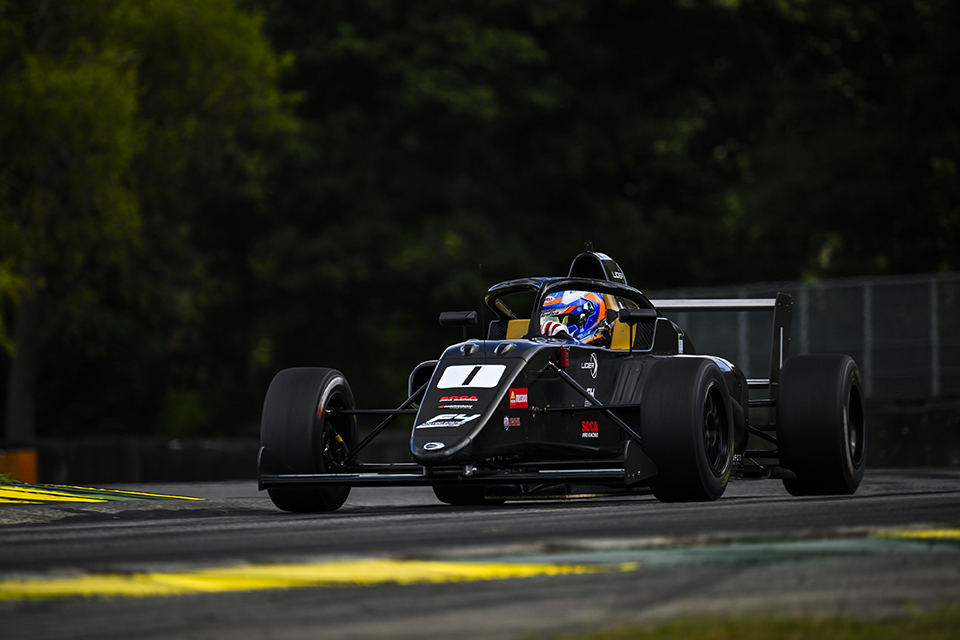

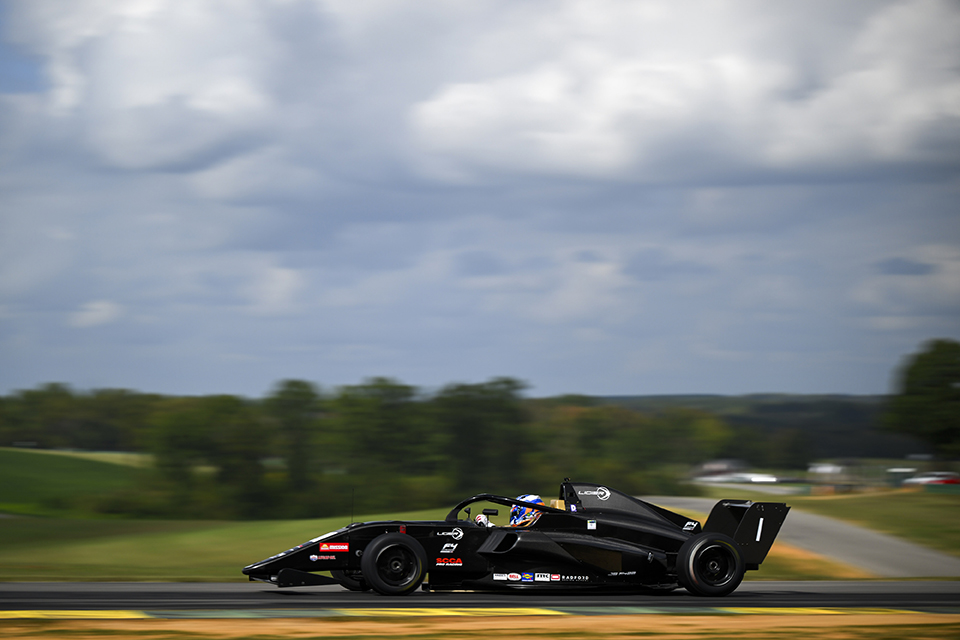

The second generation of the Ligier F4, the Ligier JS F422, takes over the Ligier JS F4. Lighter and longer, the Ligier JS F422 features enhanced safety innovations, including the Halo driver impact system.

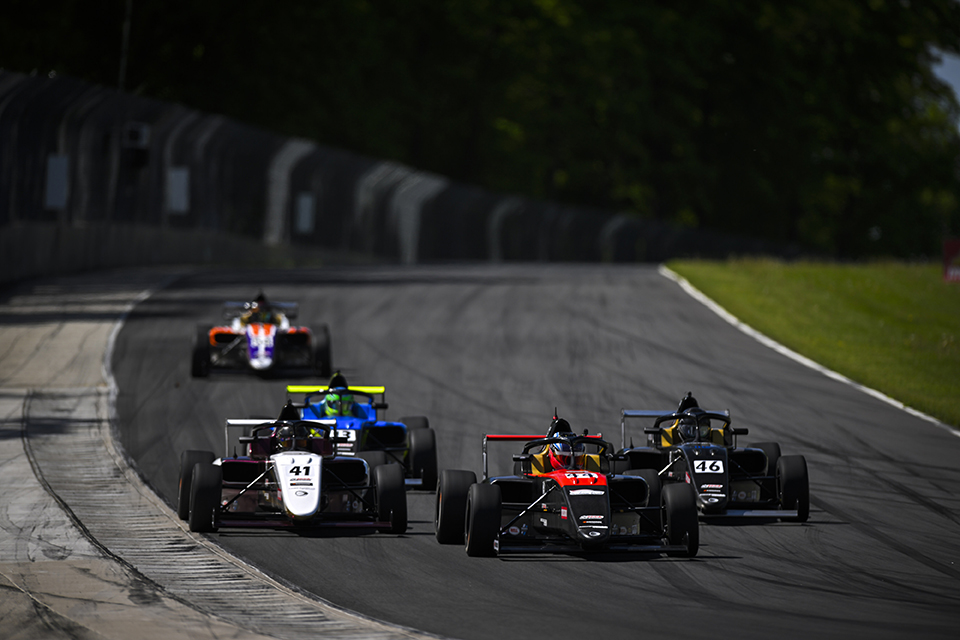

The Ligier JS F422 has been selected by Parella Motorsports Holdings to be the exclusive model in the F4 U.S. Championship and will replace the Ligier JS F4 starting in 2024.

It will be powered by the Ligier Storm, a 1.65-liter, V4 engine developed by Ligier Automotive's team of engineers. Other engines can also be installed in the Ligier JS F4 depending on the championship.

Technical sheet

CHASSIS & BODYWORK

2022 FIA F4 Specification carbon composite monocoque
Lightweight carbon fiber bodywork with 50% increase in aerodynamics efficiency

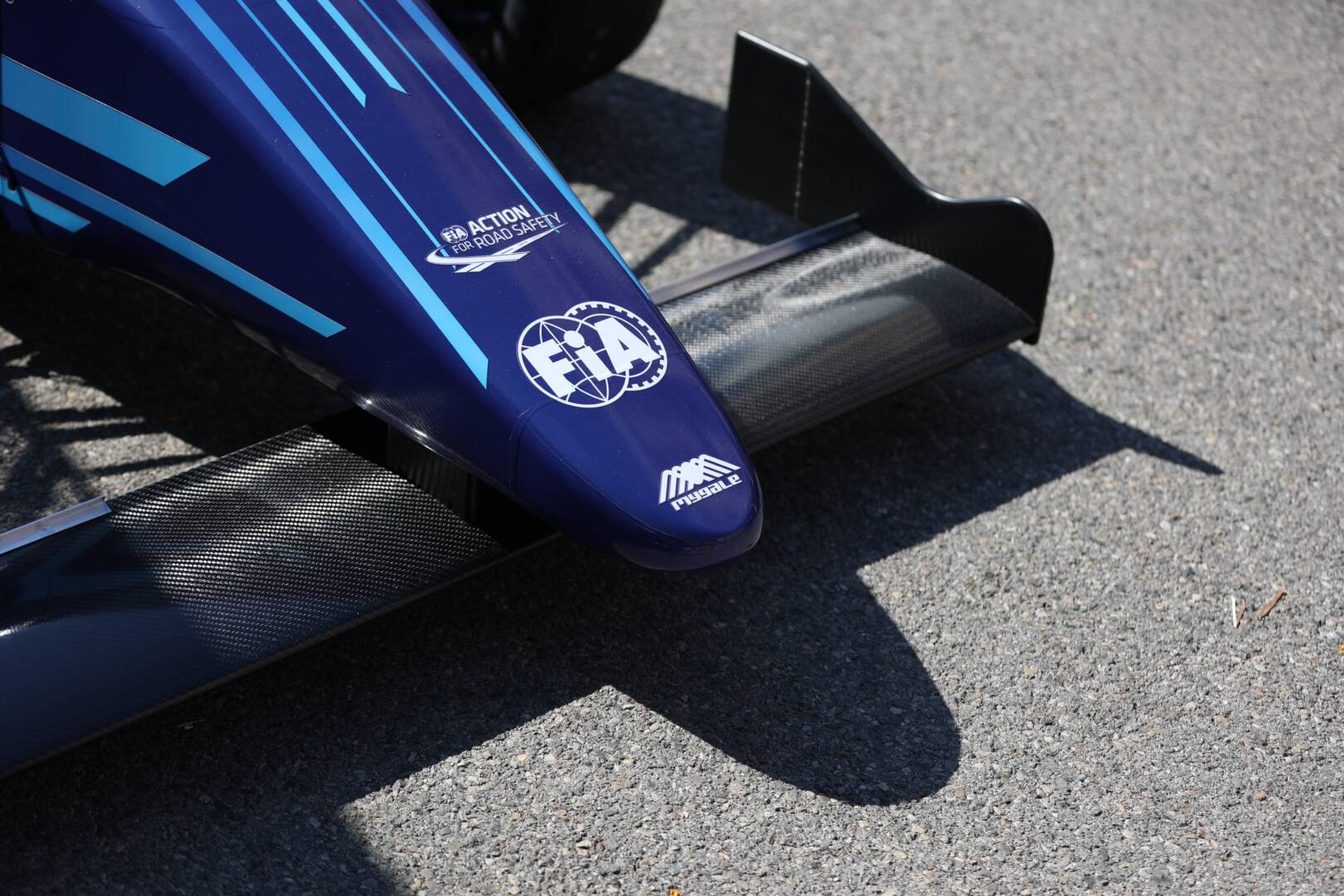

Adjustable front and rear wings
Length: 4814 mm / Width: 1740 mm / Wheelbase: 2860 mm
Weight: 530 kg

SUSPENSION

Double wishbone
Pushrod adjustable ride
Adjustable anti-roll bars

DAMPERS

JRi 2-way adjustable dampers

GEARBOX

SLR75 Sadev 6-speed sequential gearbox
Pneumatic steering wheel paddle-shift system

STEERING

Rack and pinion steering
Quick release steering wheel
Height adjustable column
Safety collapsible steering column

ENGINE

Any homologated F4 FIA engine
Max power output: 180 hp optimized per FIA hp/weight rules

ELECTRONICS

New Ligier steering wheel with GEMS LED color display & predictive lap
CAN-connected camera with data overlay
Wing endplate lights for enhanced visibility

BRAKES

4-piston monobloc PFC calipers
Adjustable pedal box for position
Cockpit adjustable brake bias

SECURITY

FIA specification 6-point harness
FIA safety removable seat and harness
On-board fire suppression system
HANS compatible headrest
Nose box crash structure
Rear attenuator
Wheel tethers, 2 per corner
Zylon anti-intrusion side panels
Cockpit halo bar
